JYO-2501 LED系列
发布日期: 2022-03-17
浏览次数: 100次
咨询电话: 0731-86390018
关 键 词:
 下一篇: JYO-2501-A LED 上一篇: JYO-1502USB

详细介绍

28-LED 2501(1).png28-JYO-LED 2501系列(1).png28-JYO-LED 2501 系列尺寸(1).png

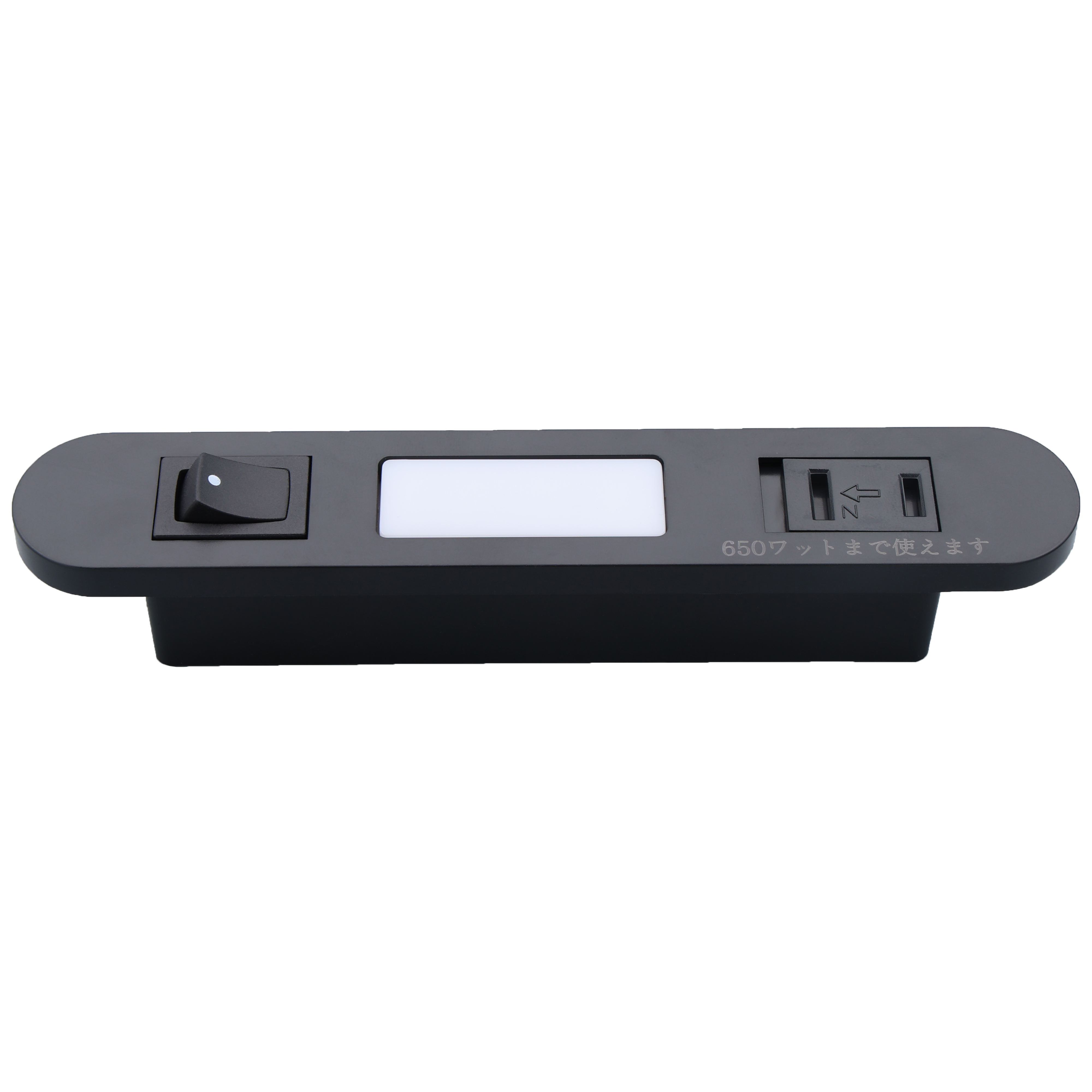

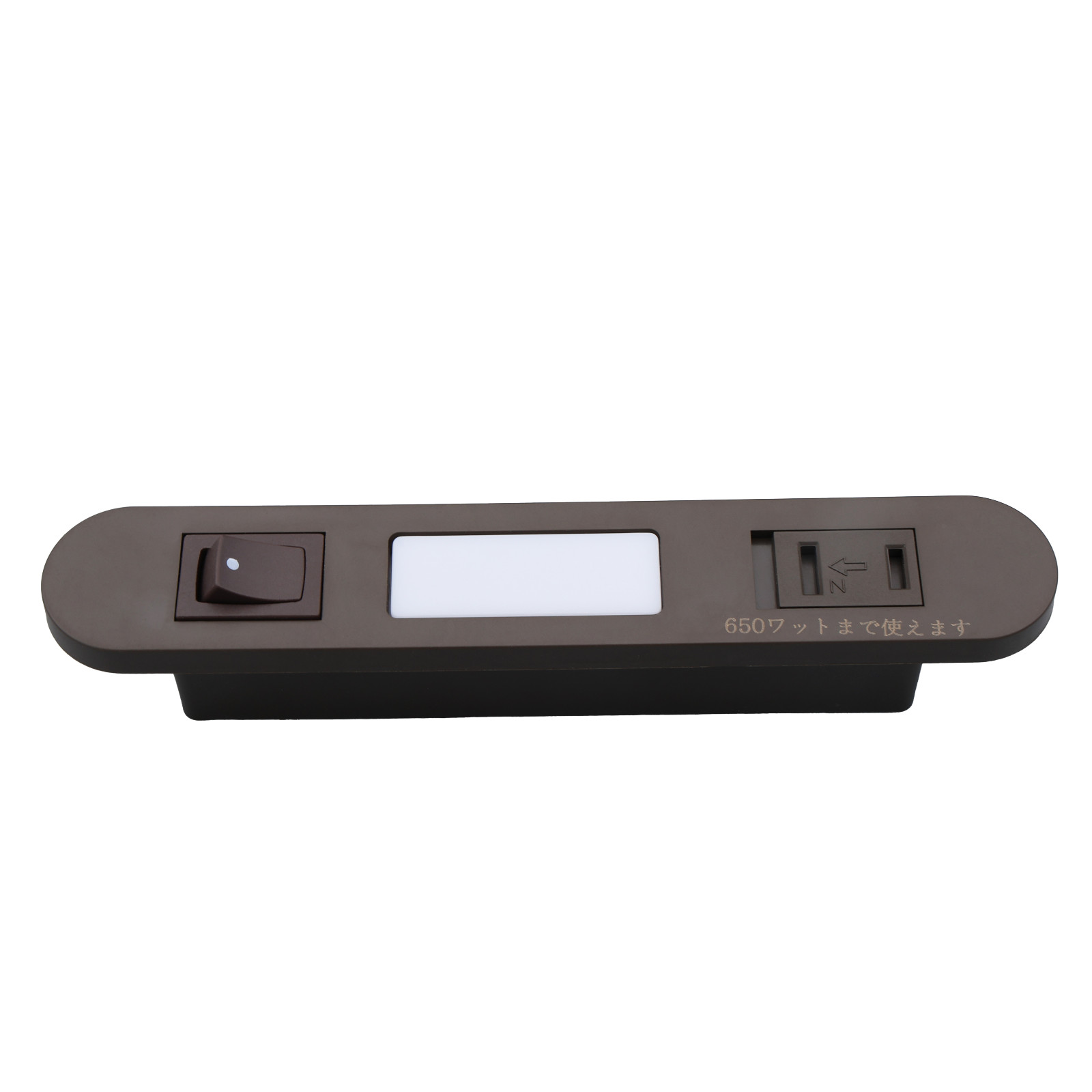

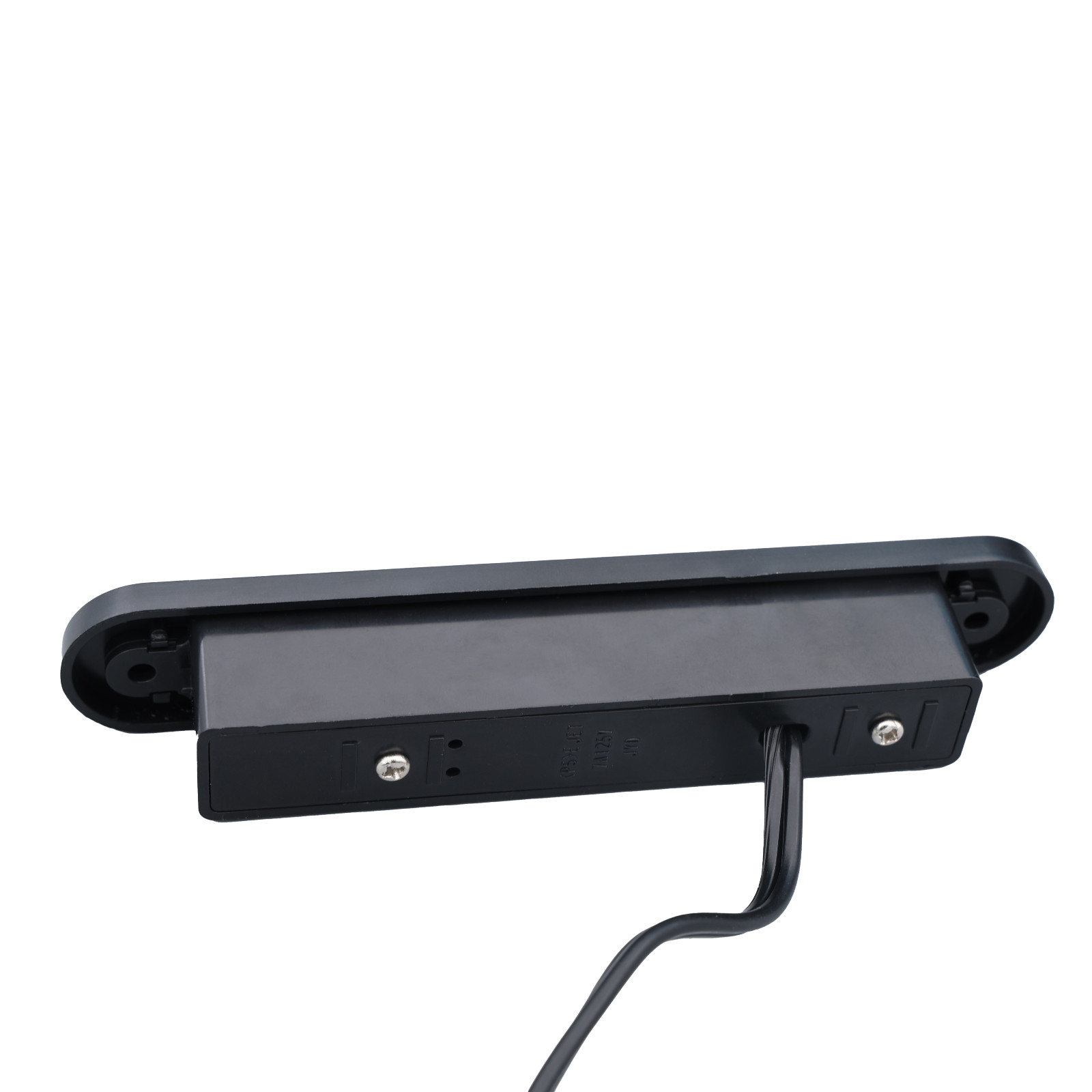

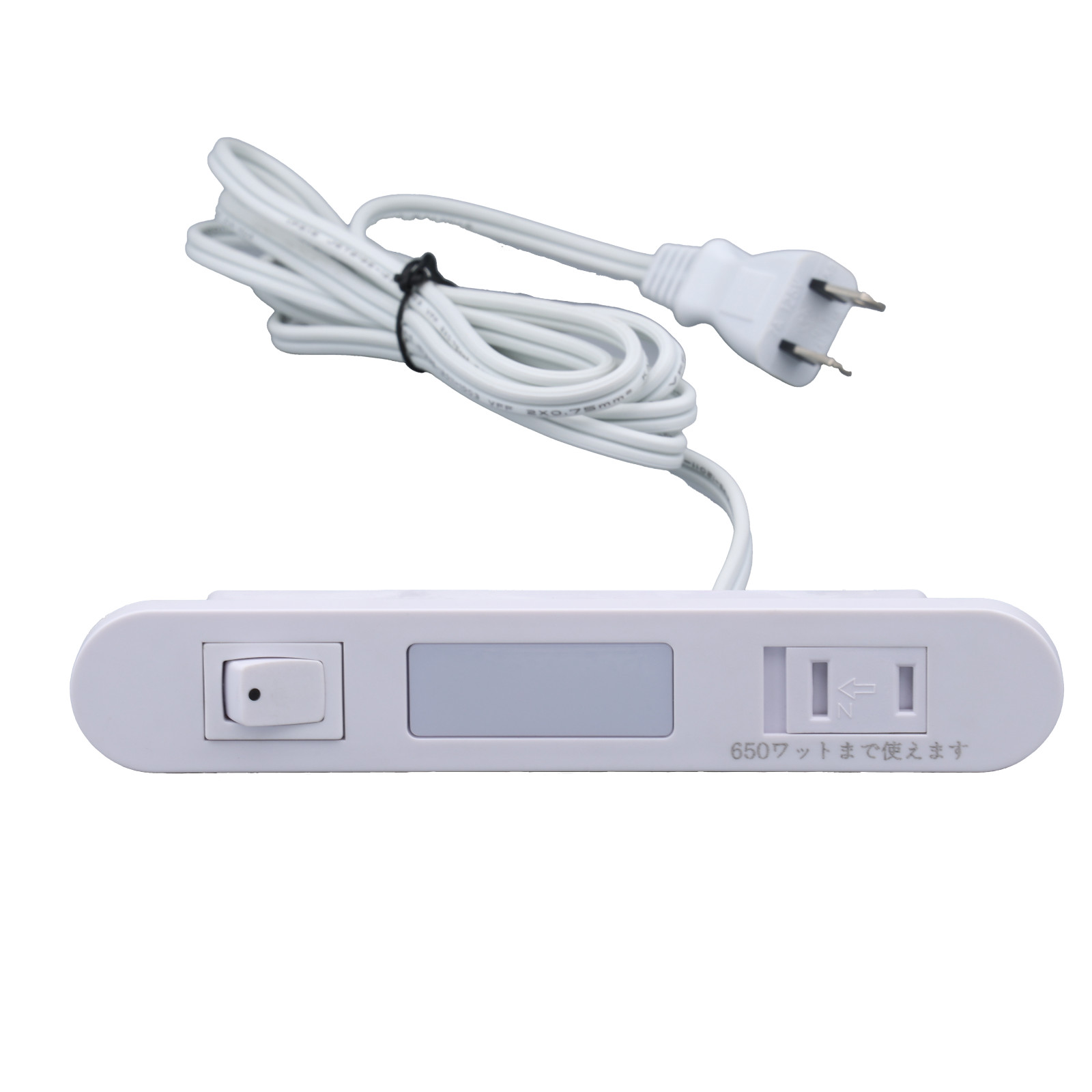

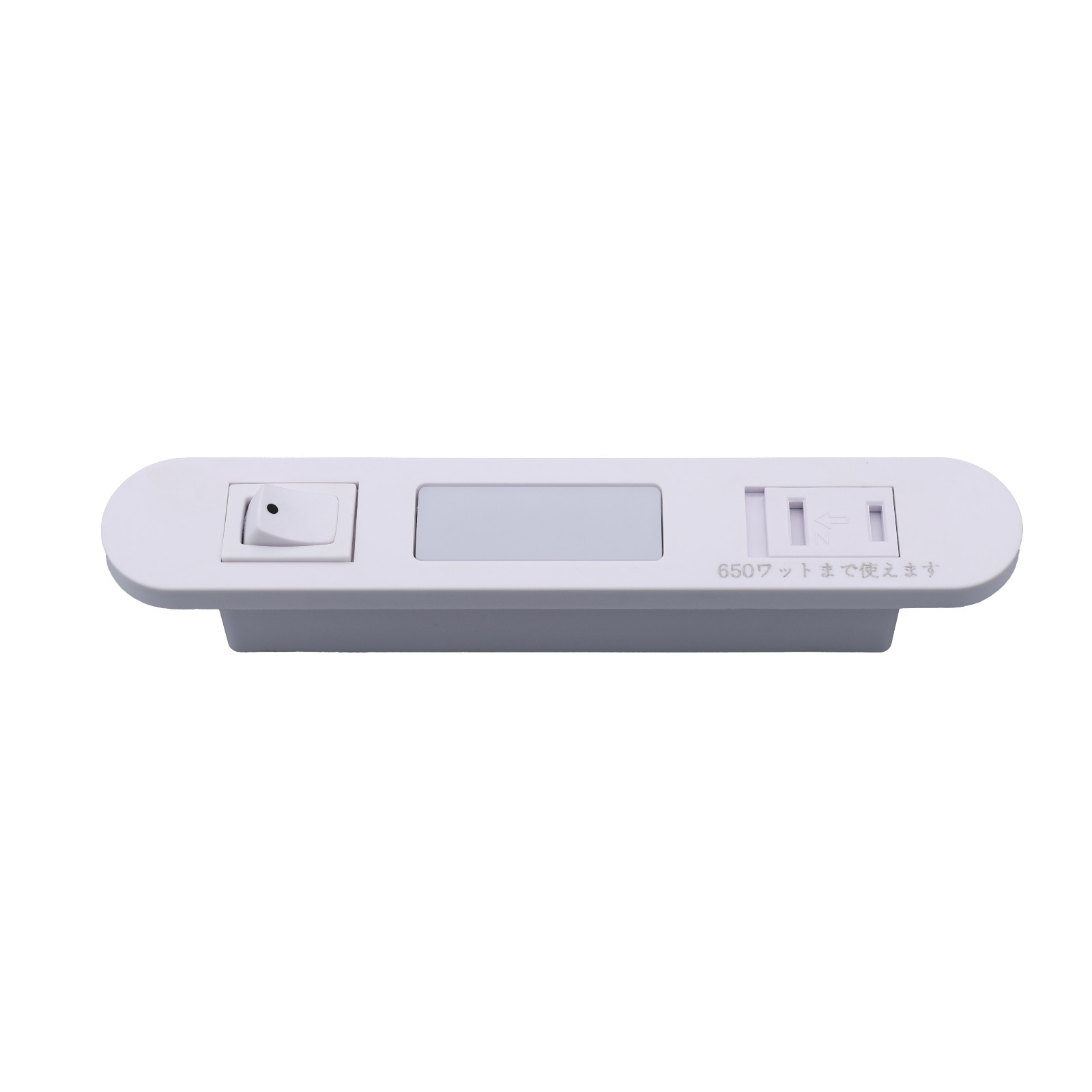

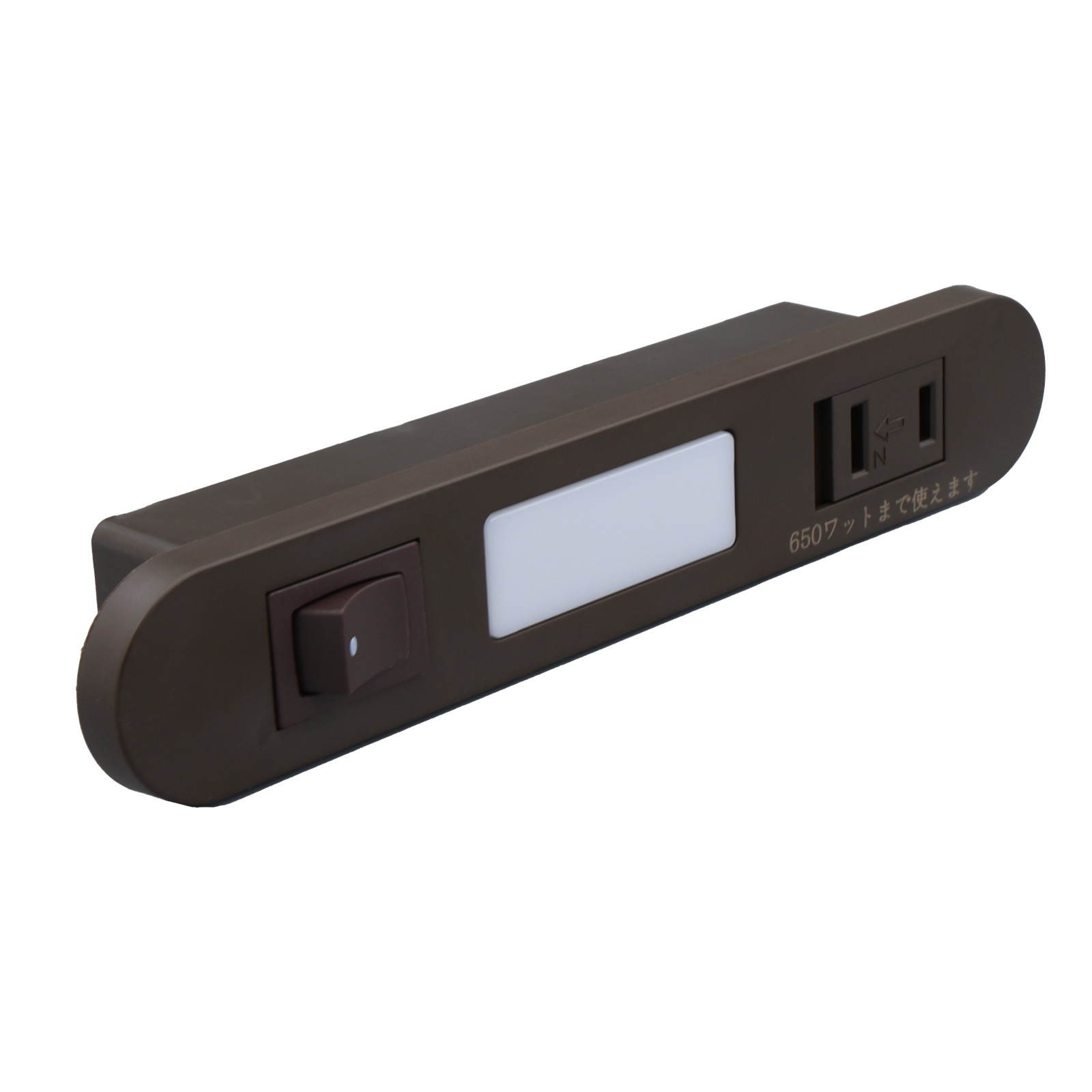

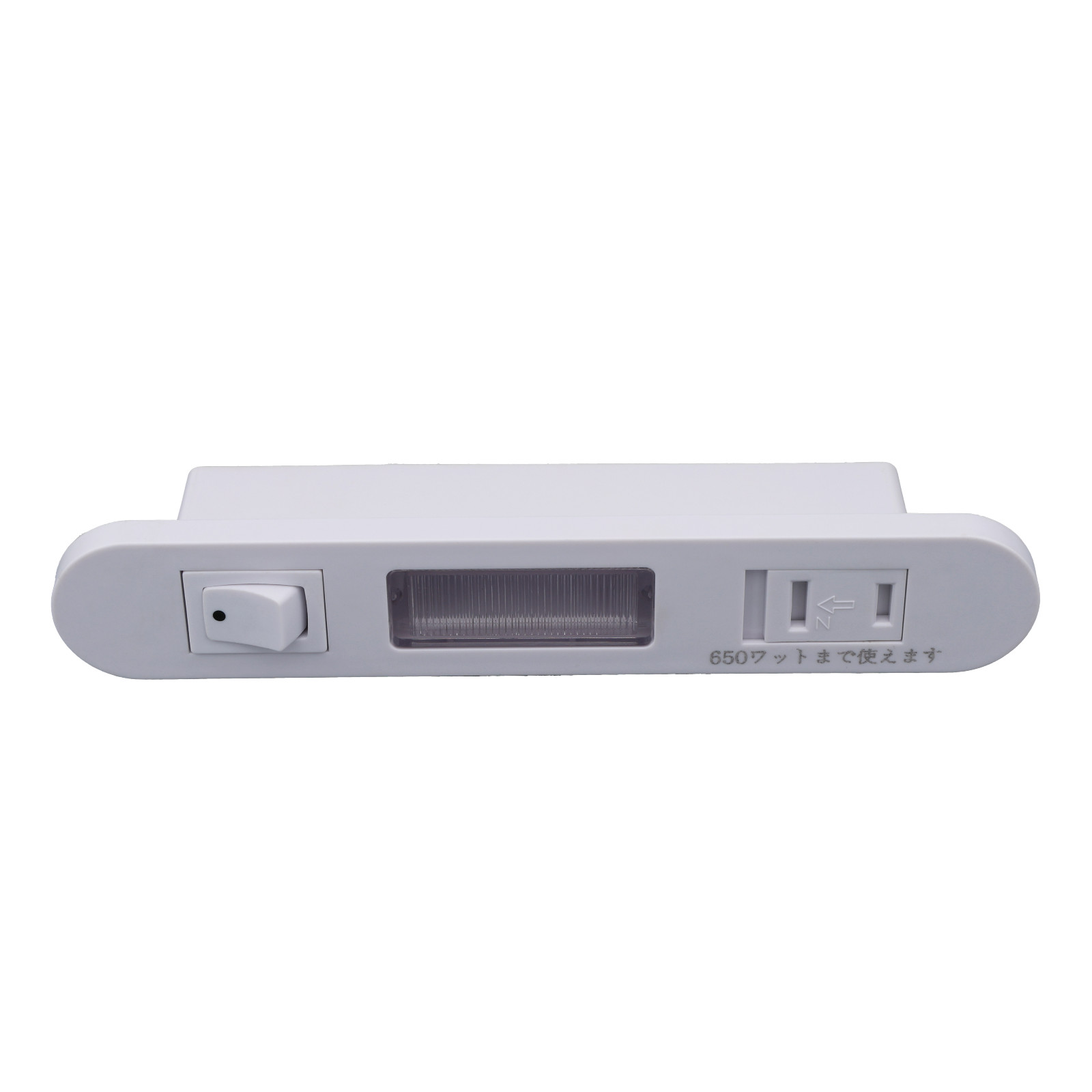

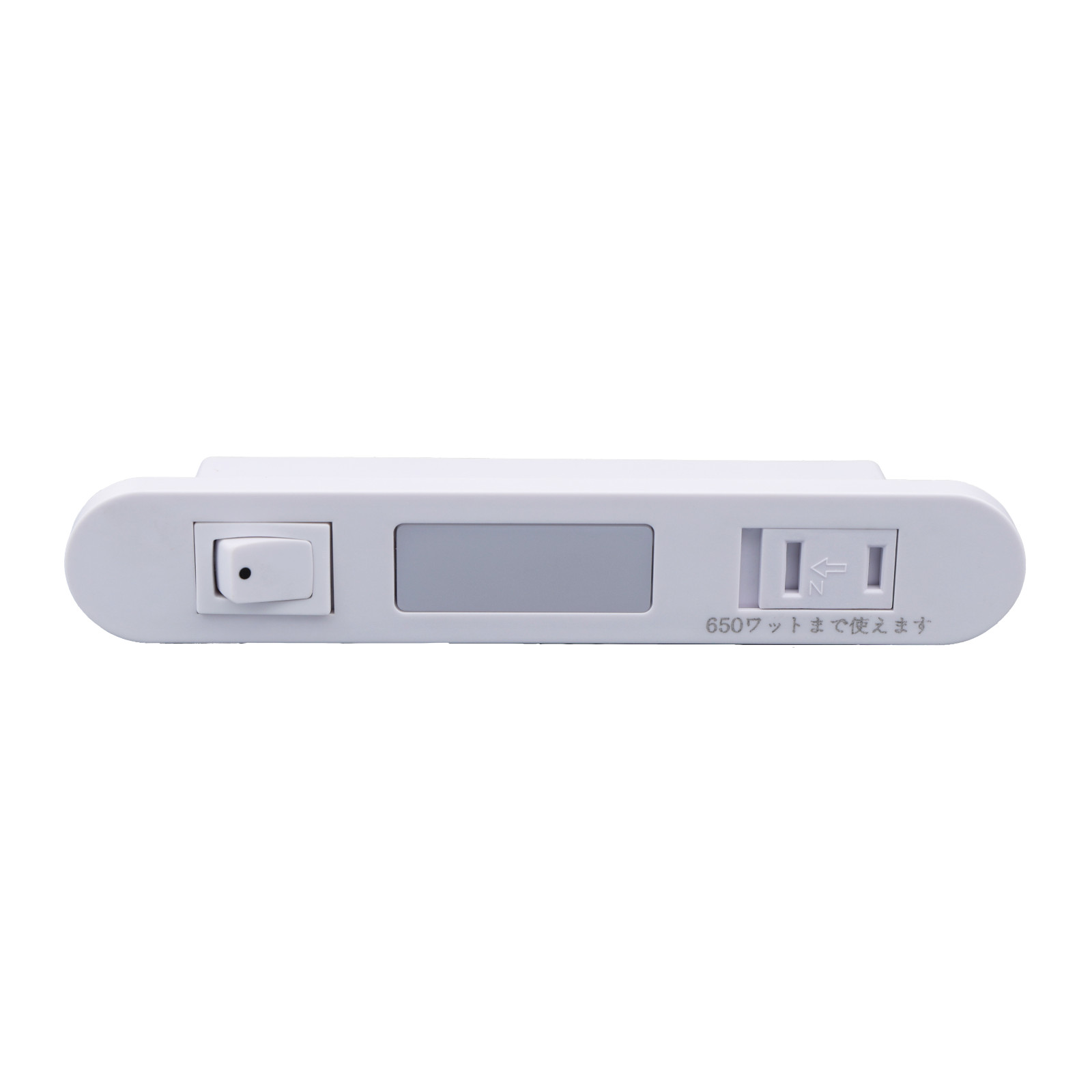

JYO-LED-2501 LED灯插座产品介绍

一、产品概述

中文:

JYO-LED-2501 是一款集 LED 照明与电源插座功能于一体的家具配套产品,采用一体式结构设计,配备独立开关、LED 照明区域及日规两孔插座,可同时满足家具局部照明与电源使用需求。

产品提供半圆型照明盖和平型照明盖两种外观款式,照明盖有不同外观效果可选。外壳采用 V0 级阻燃 PC 材料,内部采用一体铜条设计,导电高效可靠。产品通过日本 JET 认证,并获得 PSE 证书。提供黑色、白色、茶色三种颜色选择。

English:

JYO-LED-2501 is an integrated furniture accessory combining LED lighting and a power outlet. It features an independent switch, an LED lighting area, and a Japanese-standard two-hole socket, meeting both auxiliary lighting and power supply needs.

The product is available with two lighting cover styles: semi-circular and flat. Different lighting cover appearances are available. The housing is made of V0-rated flame-retardant PC material, and the integrated copper contact design provides efficient and reliable conductivity. The product has obtained Japanese JET certification and a PSE certificate. Available in black, white, and brown.

日本語:

JYO-LED-2501は、LED照明と電源コンセントを一体化した家具用製品です。独立スイッチ、LED照明部、日本仕様の2穴コンセントを備え、家具の補助照明と電源供給の両方に対応します。

照明カバーは半円型と平型の2種類を用意しており、異なる外観からお選びいただけます。外装にはV0グレードの難燃性PC材料を使用し、内部には一体型銅バー設計を採用しています。日本JET認証を取得し、PSE証明書にも対応しています。ブラック・ホワイト・ブラウンの3色からお選びいただけます。

二、核心卖点

1. 照明与插座一体化 | Integrated Lighting and Power Outlet | 照明・コンセント一体型

中文:将 LED 照明与电源插座整合于一体,兼顾家具照明和日常用电需求。

English: Combines LED lighting and a power outlet in one unit, meeting both furniture lighting and everyday power needs.

日本語:LED照明と電源コンセントを一体化し、家具の照明と日常の電源使用に対応します。

2. 两种照明盖款式 | Two Lighting Cover Styles | 2種類の照明カバー

中文:提供半圆型和平型两种照明盖设计,方便根据家具外观及设计需求选择。

English: Available with semi-circular and flat lighting covers to suit different furniture designs.

日本語:半円型と平型の2種類の照明カバーを用意し、家具のデザインに合わせてお選びいただけます。

3. 独立开关控制 | Independent Switch Control | 独立スイッチ

中文:配备独立开关,方便控制照明功能,操作直观。

English: Equipped with an independent switch for convenient and straightforward lighting control.

日本語:独立スイッチを搭載し、照明を簡単に操作できます。

4. V0级阻燃PC外壳 | V0-Rated Flame-Retardant PC Housing | V0グレード難燃性PC外装

中文:采用 V0 级阻燃 PC 材料制作外壳,兼顾产品结构与使用安全要求。

English: Features a V0-rated flame-retardant PC housing, designed to meet product structure and safety requirements.

日本語:外装にはV0グレードの難燃性PC材料を使用しています。

5. 一体铜条设计 | Integrated Copper Contacts | 一体型銅バー設計

中文:内部采用一体铜条设计,导电高效可靠。

English: Features integrated copper contacts for efficient and reliable conductivity.

日本語:内部に一体型銅バーを採用し、効率的で安定した導電性を実現します。

6. 日本认证 | Japanese Certification | 日本認証

中文:通过日本 JET 认证,并获得 PSE 证书。

English: Obtained Japanese JET certification and a PSE certificate.

日本語:日本JET認証を取得し、PSE証明書にも対応しています。

7. 三种颜色可选 | Three Color Options | 3色展開

中文:提供黑色、白色、茶色三种颜色,方便搭配不同家具风格。

English: Available in black, white, and brown to match different furniture styles.

日本語:ブラック・ホワイト・ブラウンの3色からお選びいただけます。

三、规格参数

中文:

  • 产品型号:JYO-LED-2501

  • 产品类型:LED灯插座

  • 插座类型:日规两孔插座

  • 照明功能:LED照明

  • 开关配置:独立开关

  • 照明盖款式:半圆型 / 平型

  • 外壳材质:V0级阻燃PC

  • 内部结构:一体铜条设计

  • 额定参数:

    • AC 125V 15A 1450W

    • AC 125V 12A 1150W

    • AC 125V 7A 650W

  • 认证:日本JET认证 / PSE证书

  • 产品颜色:黑色 / 白色 / 茶色

English:

  • Model: JYO-LED-2501

  • Product Type: LED Light with Power Outlet

  • Socket Type: Japanese-Standard Two-Hole Socket

  • Lighting: LED Lighting

  • Switch: Independent Switch

  • Lighting Cover Styles: Semi-Circular / Flat

  • Housing Material: V0-Rated Flame-Retardant PC

  • Internal Structure: Integrated Copper Contacts

  • Electrical Ratings:

    • AC 125V 15A 1450W

    • AC 125V 12A 1150W

    • AC 125V 7A 650W

  • Certifications: Japanese JET / PSE

  • Colors: Black / White / Brown

日本語:

  • 型番:JYO-LED-2501

  • 製品タイプ:LEDライト付きコンセント

  • コンセント仕様:日本仕様2穴コンセント

  • 照明機能:LED照明

  • スイッチ:独立スイッチ

  • 照明カバー:半円型 / 平型

  • 外装材質:V0グレード難燃性PC

  • 内部構造:一体型銅バー

  • 定格仕様:

    • AC 125V 15A 1450W

    • AC 125V 12A 1150W

    • AC 125V 7A 650W

  • 認証:日本JET認証 / PSE

  • カラー:ブラック / ホワイト / ブラウン

四、应用场景

1. 床头柜 | Bedside Tables | ベッドサイドテーブル

中文:适用于床头柜及床边家具,将局部照明与电源插座整合,方便日常使用。

English: Suitable for bedside tables, integrating auxiliary lighting and a power outlet for everyday convenience.

日本語:ベッドサイドテーブルなどに適しており、補助照明とコンセントを一体化して便利に使用できます。

2. 橱柜及储物柜 | Cabinets and Storage Units | キャビネット・収納家具

中文:适用于橱柜、储物柜等家具,可根据家具结构选择合适的照明盖款式。

English: Suitable for cabinets and storage units, with lighting cover styles selected to match the furniture structure.

日本語:キャビネットや収納家具に適しており、家具の構造に合わせて照明カバーの種類を選択できます。

3. 办公家具 | Office Furniture | オフィス家具

中文:适用于办公桌及其他办公家具,兼顾局部照明与电源使用需求。

English: Suitable for desks and other office furniture, providing both auxiliary lighting and power access.

日本語:デスクなどのオフィス家具に適しており、補助照明と電源の両方に対応します。

4. 定制家具 | Custom Furniture | オーダー家具

中文:适用于各类定制家具项目,可根据家具外观及安装结构选择半圆型或平型照明盖。

English: Suitable for custom furniture projects, with semi-circular or flat lighting covers selected according to the furniture design and installation structure.

日本語:各種オーダー家具に対応し、家具のデザインや取り付け構造に合わせて半円型または平型の照明カバーを選択できます。

五、安装说明

1. 确认安装位置 | Confirm Installation Position | 取り付け位置の確認

中文:根据家具结构及实际使用需求,确定产品安装位置,并预留相应的安装空间。

English: Determine the installation position and reserve sufficient space according to the furniture structure and actual usage requirements.

日本語:家具の構造や使用目的に合わせて取り付け位置を決め、必要なスペースを確保してください。

2. 产品安装 | Product Installation | 製品の取り付け

中文:根据产品实际结构及家具预留位置进行安装,确保产品安装平整、固定牢固。

English: Install the product according to its actual structure and the reserved furniture space, ensuring a flush and secure fit.

日本語:製品の構造と家具の設置スペースに合わせて取り付け、平らで確実に固定してください。

3. 电源连接 | Power Connection | 電源接続

中文:按照产品实际供电结构进行电源连接,避免线路受到挤压、拉扯或过度弯折。电气连接应由专业人员完成。

English: Connect the power supply according to the product's actual electrical configuration. Avoid pinching, pulling, or excessively bending the wiring. Electrical connections must be completed by qualified personnel.

日本語:製品の実際の電源仕様に従って接続し、配線の挟み込みや引っ張り、過度な折り曲げを避けてください。電気接続は専門業者が行ってください。

4. 安装检查 | Installation Inspection | 取り付け確認

中文:检查产品固定状态、LED照明、独立开关及插座功能,确认安装牢固、各项功能正常后再投入使用。

English: Check the product mounting, LED lighting, independent switch, and power outlet. Confirm secure installation and normal operation before use.

日本語:本体の固定状態、LED照明、独立スイッチ、コンセントの動作を確認してください。確実に取り付けられ、各機能が正常に動作することを確認してから使用してください。
