JYO-1503 USB
发布日期: 2022-03-17
浏览次数: 100次
咨询电话: 0731-86390018
关 键 词:
 下一篇: JYO-1506系列 上一篇: JYO-2501-A LED

详细介绍

19-1503USB(1).png19-JYO-1503 USB(1).png19-JYO-1503 USB尺寸(1).png

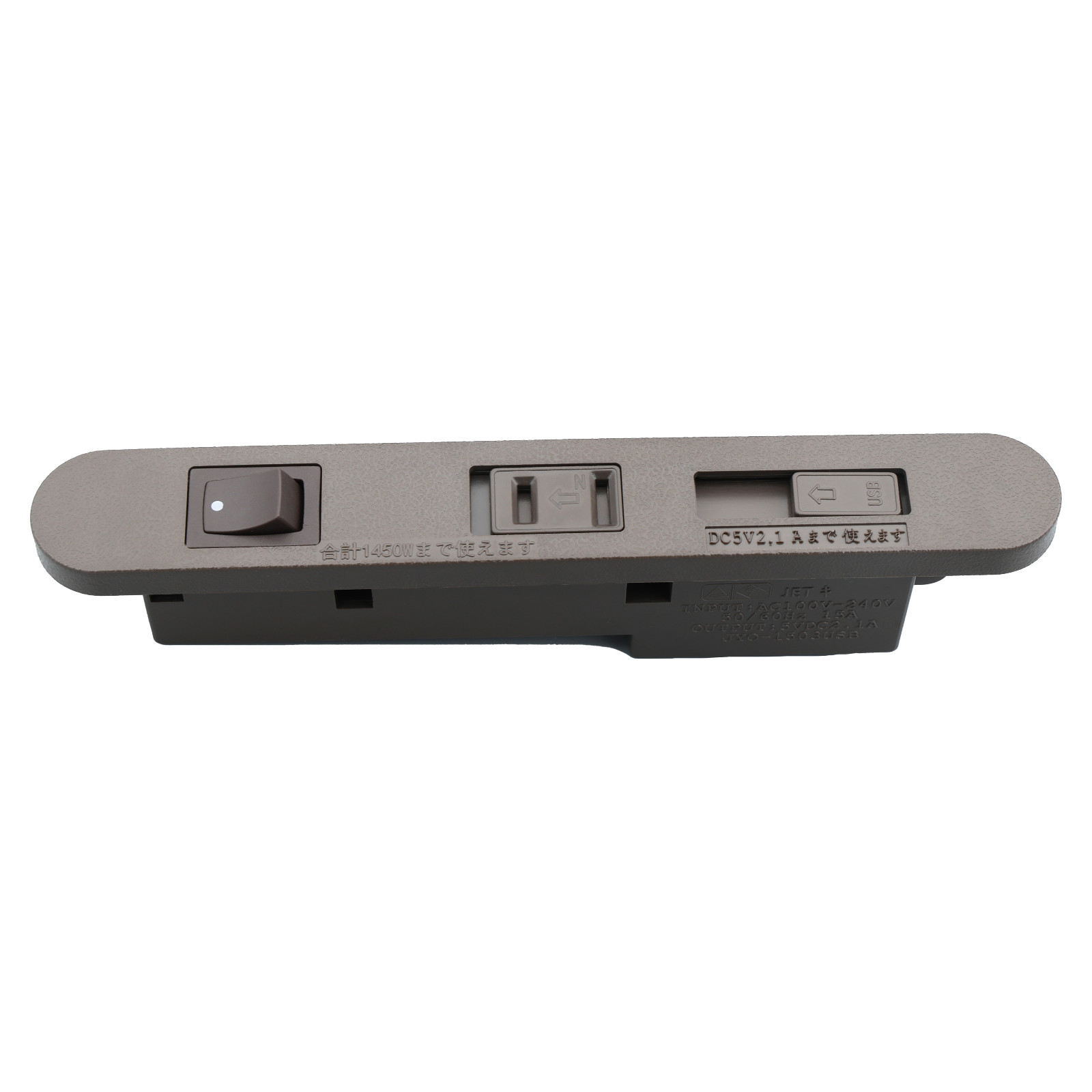

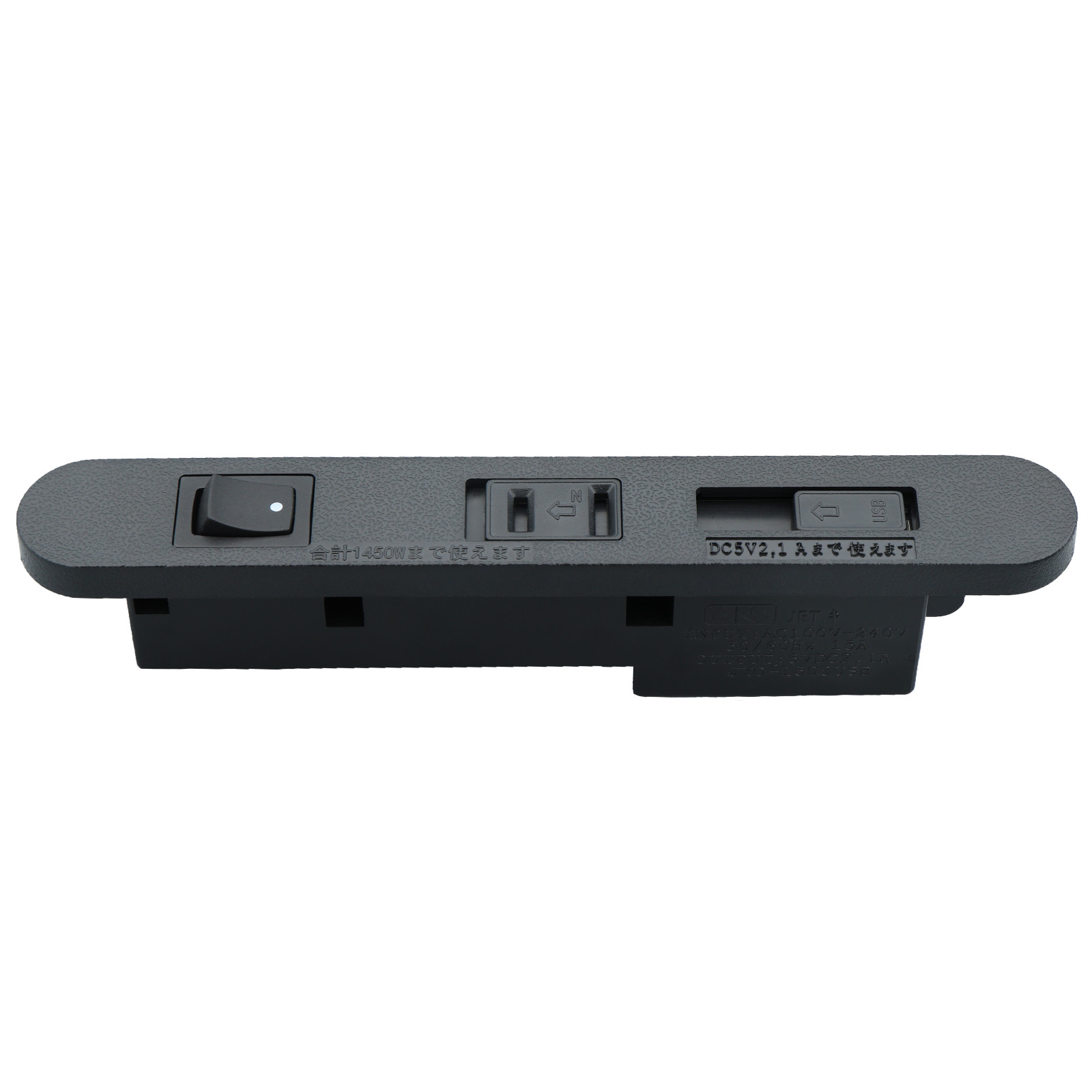

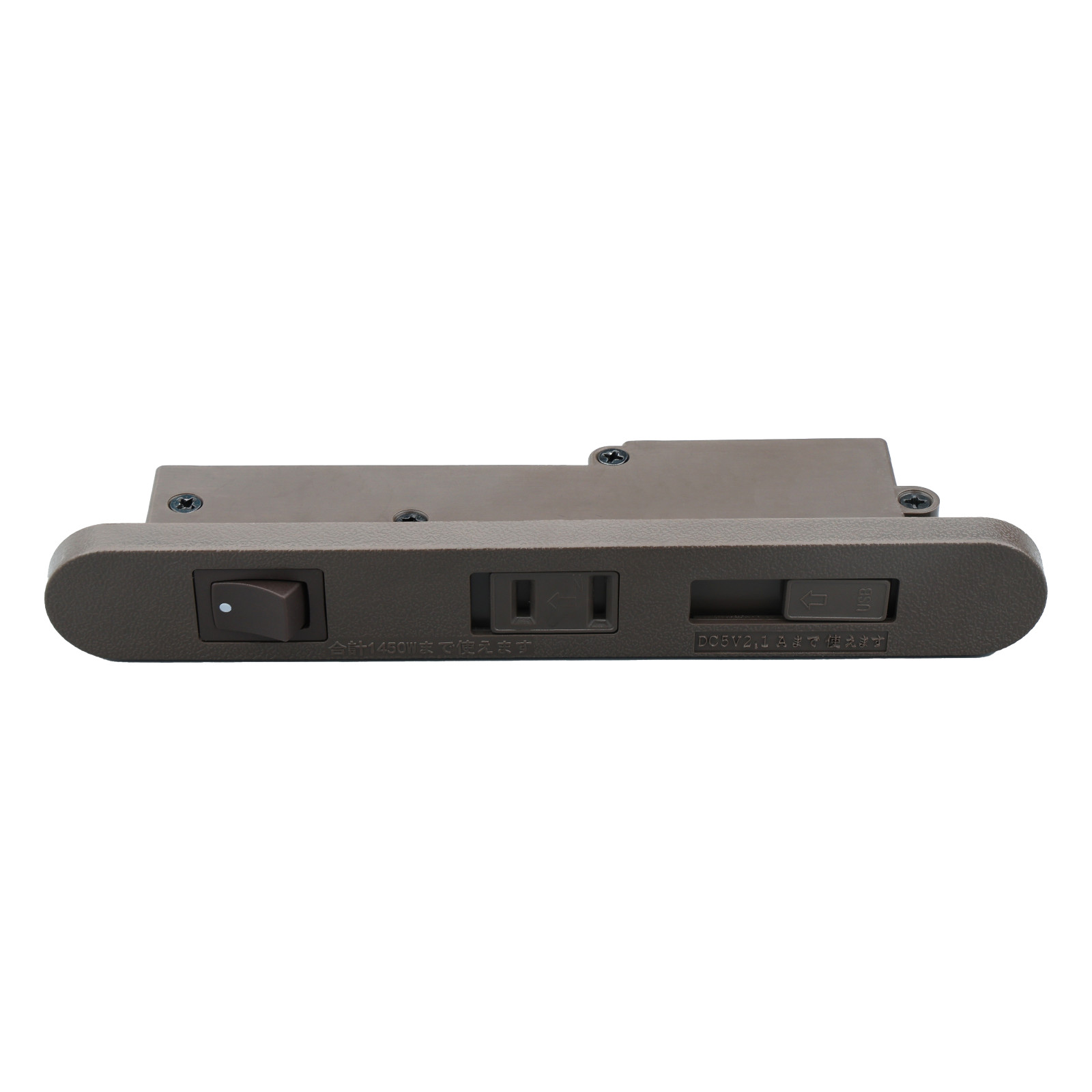

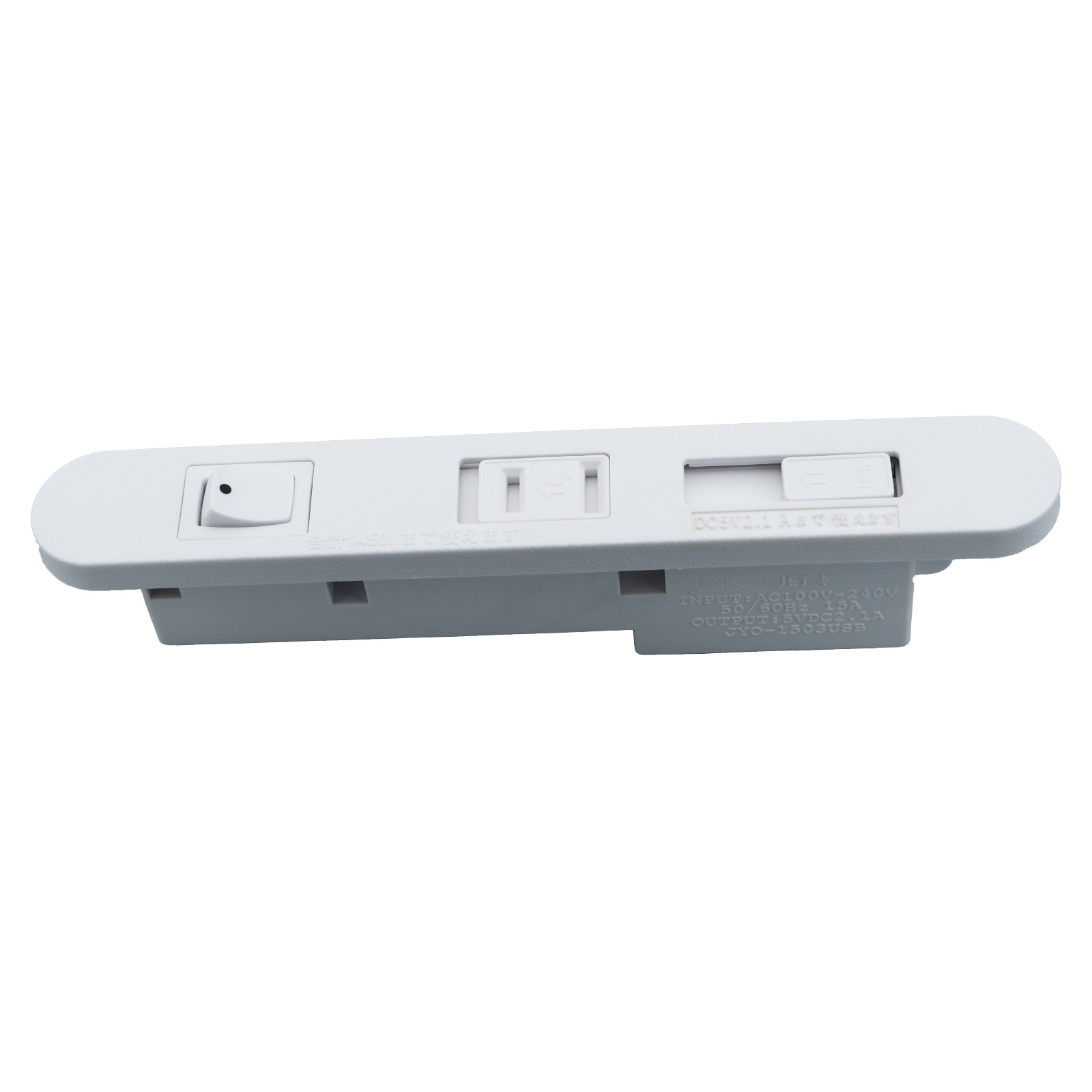

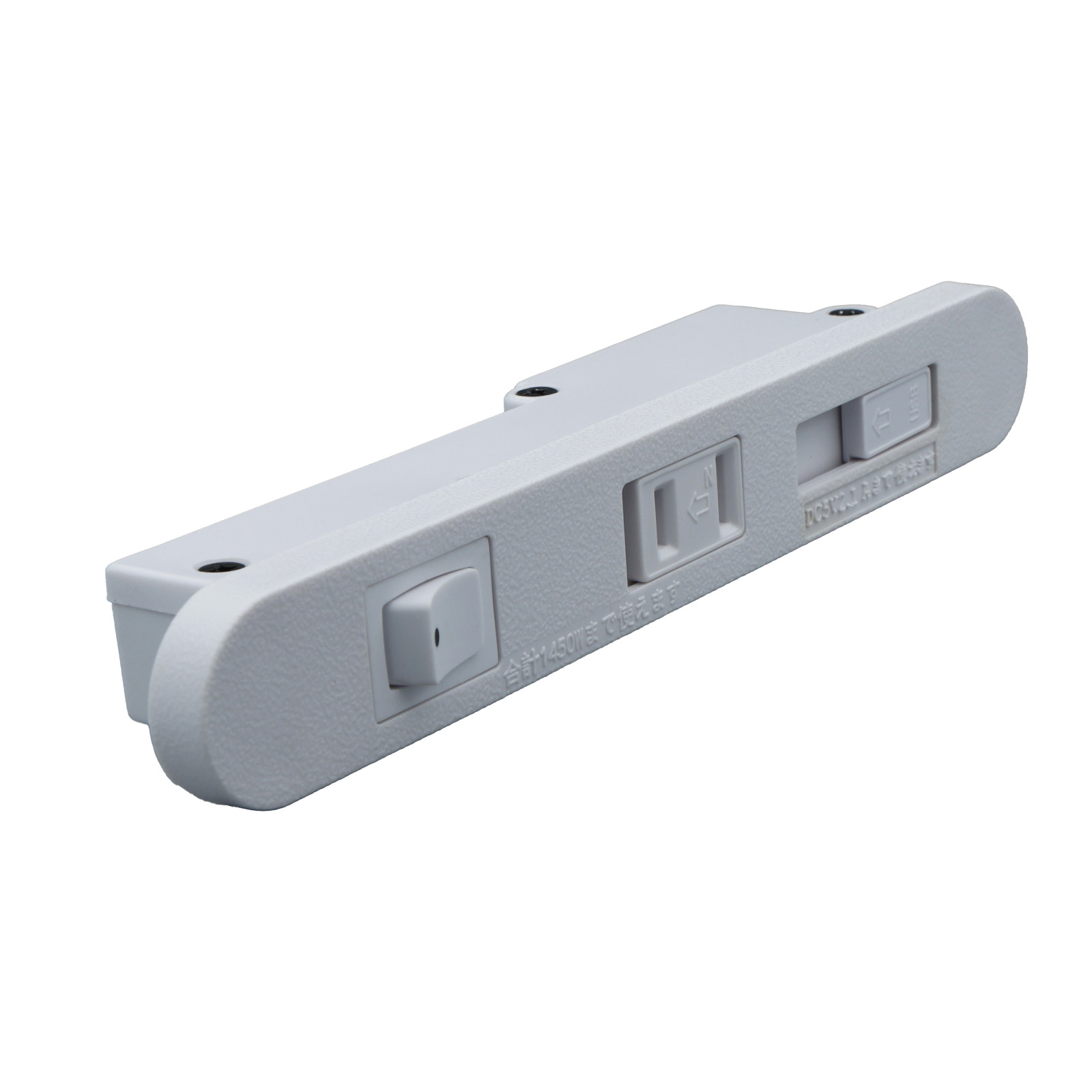

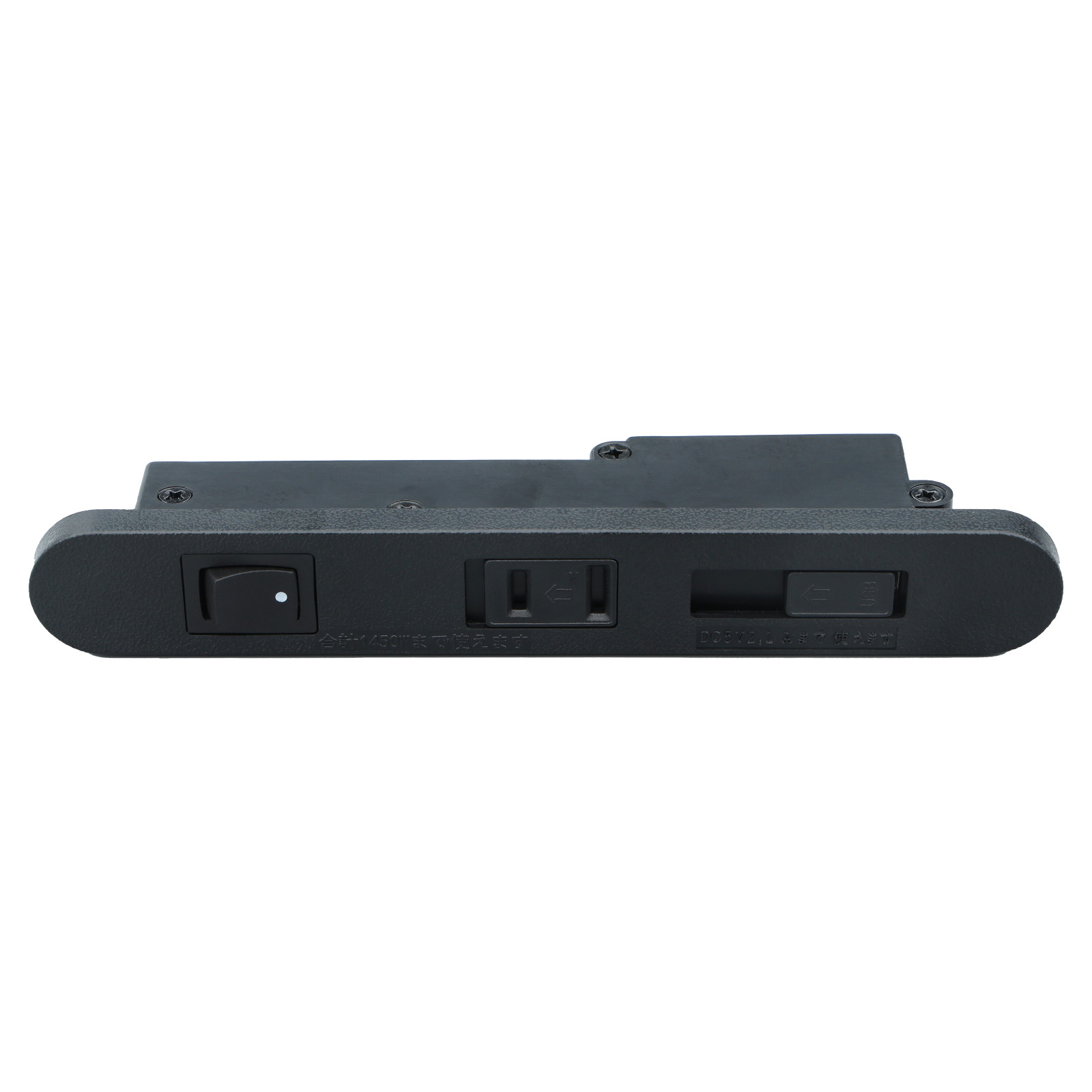

JYO-1503 USB USB充電付きスライドコンセント产品介绍

一、产品概述

中文:

JYO-1503 USB 是一款日规 USB 充电式滑盖插座,采用单位两孔插座、独立开关、USB 充电接口及母插头接口组合设计,将多种功能整合于一体。产品结构紧凑,适用于家具嵌入式配套安装。外壳采用 VO 级阻燃 PC 材料,内部采用一体铜条设计,导电高效可靠。通过日本 JET 认证,并获得 PSE 证书。产品自带引出电源线,提供黑色、白色、茶色三种颜色选择。

English:

JYO-1503 USB is a Japanese-standard sliding socket with USB charging. It integrates a single two-pin socket outlet, an independent switch, a USB charging port, and a female plug interface into one compact unit. Designed for furniture installation, it features a VO-grade flame-retardant PC housing and integrated copper contacts for efficient and reliable conductivity. The product is JET certified and holds a PSE certificate. Supplied with an attached power cord, it is available in black, white, and brown.

日本語:

JYO-1503 USBは、USB充電機能を備えた日本仕様のスライド式コンセントです。1口2ピンコンセント、独立スイッチ、USB充電ポート、メスプラグを一体化した設計です。コンパクトな構造で、家具への組み込みに適しています。VOグレードの難燃性PC外装と一体型銅バー設計を採用しています。日本のJET認証を取得し、PSE証明書にも対応しています。引き出し式電源コード付きで、ブラック・ホワイト・ブラウンの3色からお選びいただけます。

二、核心卖点

1. 单位两孔插座 | Single Two-Pin Socket | 1口2ピンコンセント

中文:配备一个两孔插座接口,满足日常电器设备的用电需求。

English: Equipped with one two-pin socket outlet for everyday electrical appliances.

日本語:2ピン差込口を1口備え、日常的な電気機器の使用に対応します。

2. 独立开关控制 | Independent Switch Control | 独立スイッチ

中文:配备独立电源开关,可根据使用需求控制插座电源。

English: Features an independent power switch for convenient control of the socket power supply.

日本語:独立電源スイッチを搭載し、使用状況に応じてコンセントの電源を操作できます。

3. USB充电功能 | USB Charging Function | USB充電機能

中文:配备 USB 充电接口,支持 DC 5V 2.1A 输出,可为兼容电子设备提供充电电源。

English: Equipped with a USB charging port with DC 5V 2.1A output for compatible electronic devices.

日本語:USB充電ポートを搭載し、DC 5V 2.1A出力で対応する電子機器を充電できます。

4. 母插头接口设计 | Female Plug Interface | メスプラグ付き

中文:配备母插头接口,丰富产品接口配置,满足相应连接需求。

English: Includes a female plug interface to support the corresponding connection requirements.

日本語:メスプラグを備え、用途に応じた接続に対応します。

5. VO级阻燃PC外壳 | VO-Grade Flame-Retardant PC Housing | VOグレード難燃性PC外装

中文:采用 VO 级阻燃 PC 材料,具有良好的绝缘及阻燃性能。

English: Made with VO-grade flame-retardant PC material, offering insulation and flame-retardant properties.

日本語:VOグレードの難燃性PC材料を使用し、絶縁性と難燃性に配慮しています。

6. 一体铜条设计 | Integrated Copper Contacts | 一体型銅バー設計

中文:内部采用一体铜条设计,导电高效可靠。

English: Features integrated copper contacts for efficient and reliable conductivity.

日本語:内部に一体型銅バーを採用し、効率的で安定した導電性を実現します。

7. 三种颜色可选 | Three Color Options | 3色展開

中文:提供黑色、白色、茶色三种颜色,满足不同家具配色需求。

English: Available in black, white, and brown to match different furniture finishes.

日本語:ブラック・ホワイト・ブラウンの3色からお選びいただけます。

三、规格参数

中文:

  • 产品型号:JYO-1503 USB

  • 产品类型:日规USB充电式滑盖插座

  • 插座接口:单位两孔

  • 开关:独立开关

  • USB输出:DC 5V 2.1A

  • 其他接口:母插头接口

  • 额定电压:AC 125V

  • 额定参数:15A / 1450W;12A / 1150W;7A / 650W

  • 外壳材质:VO级阻燃PC

  • 内部结构:一体铜条设计

  • 电源线:自带引出电源线

  • 认证:日本JET认证、PSE证书

  • 产品颜色:黑色 / 白色 / 茶色

English:

  • Model: JYO-1503 USB

  • Product Type: Japanese-Standard Sliding Socket with USB Charging

  • Socket Outlet: Single Two-Pin Outlet

  • Switch: Independent Switch

  • USB Output: DC 5V 2.1A

  • Additional Interface: Female Plug Interface

  • Rated Voltage: AC 125V

  • Electrical Ratings: 15A / 1450W; 12A / 1150W; 7A / 650W

  • Housing Material: VO-Grade Flame-Retardant PC

  • Internal Structure: Integrated Copper Contacts

  • Power Cord: Attached Power Cord

  • Certifications: JET / PSE

  • Colors: Black / White / Brown

日本語:

  • 型番:JYO-1503 USB

  • 製品タイプ:日本仕様USB充電付きスライドコンセント

  • コンセント:1口2ピン

  • スイッチ:独立スイッチ

  • USB出力:DC 5V 2.1A

  • その他の接続口:メスプラグ

  • 定格電圧:AC 125V

  • 定格仕様:15A / 1450W;12A / 1150W;7A / 650W

  • 外装材質:VOグレード難燃性PC

  • 内部構造:一体型銅バー

  • 電源コード:引き出し式電源コード付き

  • 認証:JET認証 / PSE証明書

  • カラー:ブラック / ホワイト / ブラウン

四、应用场景

1. 床头柜 | Bedside Tables | ベッドサイドテーブル

中文:适用于床头柜及床边家具配套,可连接床头电器,并通过 USB 接口为兼容设备充电。

English: Suitable for bedside tables and bedroom furniture, providing power for bedside appliances and USB charging for compatible devices.

日本語:ベッドサイドテーブルなどの寝室家具に適しており、電気機器の接続やUSB対応機器の充電に便利です。

2. 办公家具 | Office Furniture | オフィス家具

中文:适用于办公桌、工作台等家具,可为办公设备及兼容电子设备提供电源接口。

English: Suitable for desks and workstations, providing power connections for office equipment and compatible electronic devices.

日本語:デスクやワークテーブルなどに適しており、オフィス機器や対応する電子機器の電源接続に利用できます。

3. 橱柜及储物柜 | Cabinets and Storage Units | キャビネット・収納家具

中文:适用于橱柜、储物柜等家具,将插座、开关及 USB 充电功能整合于家具之中。

English: Suitable for cabinets and storage units, integrating socket, switch, and USB charging functions into furniture.

日本語:キャビネットや収納家具に適しており、コンセント・スイッチ・USB充電機能を家具に一体化できます。

4. 定制家具 | Custom Furniture | オーダー家具

中文:适用于各类定制家具配套,可根据家具结构及实际使用需求规划安装位置。

English: Suitable for custom furniture projects, with installation planned according to the furniture structure and actual usage requirements.

日本語:各種オーダー家具に対応し、家具の構造や実際の使用目的に合わせて取り付け位置を設計できます。

五、安装说明

1. 确认安装位置 | Confirm Installation Position | 取り付け位置の確認

中文:根据家具结构及使用需求,确定插座安装位置,并预留相应安装空间。

English: Determine the installation position and reserve sufficient space according to the furniture structure and usage requirements.

日本語:家具の構造や使用目的に合わせて、取り付け位置と必要なスペースを確認します。

2. 产品安装 | Product Installation | 製品の取り付け

中文:按照产品实际结构及家具预留位置进行安装固定,确保开关及滑动结构操作顺畅。

English: Install and secure the product according to its actual structure and the reserved furniture space, ensuring smooth operation of the switch and sliding mechanism.

日本語:製品の構造と家具の設置スペースに合わせて取り付け、スイッチとスライド機構がスムーズに操作できることを確認してください。

3. 电源线布置 | Power Cord Arrangement | 電源コードの配線

中文:合理布置产品自带引出电源线,避免电源线受到挤压、拉扯或过度弯折。电气连接应由专业人员完成。

English: Arrange the attached power cord properly, avoiding pinching, pulling, or excessive bending. Electrical connections must be completed by qualified personnel.

日本語:付属の電源コードを適切に配線し、挟み込みや引っ張り、過度な折り曲げを避けてください。電気接続は専門業者が行ってください。

4. 安装检查 | Installation Inspection | 取り付け確認

中文:检查产品固定状态、插座接口、开关、USB接口、母插头接口及电源线布置情况,确认安装牢固、操作正常、连接正确后再通电使用。

English: Check the product mounting, socket outlet, switch, USB port, female plug interface, and power cord arrangement. Confirm secure installation and correct connections before use.

日本語:本体の固定状態、コンセント、スイッチ、USBポート、メスプラグ、電源コードの配線を確認してください。確実に取り付けられ、各機能が正常に動作することを確認してから通電してください。
